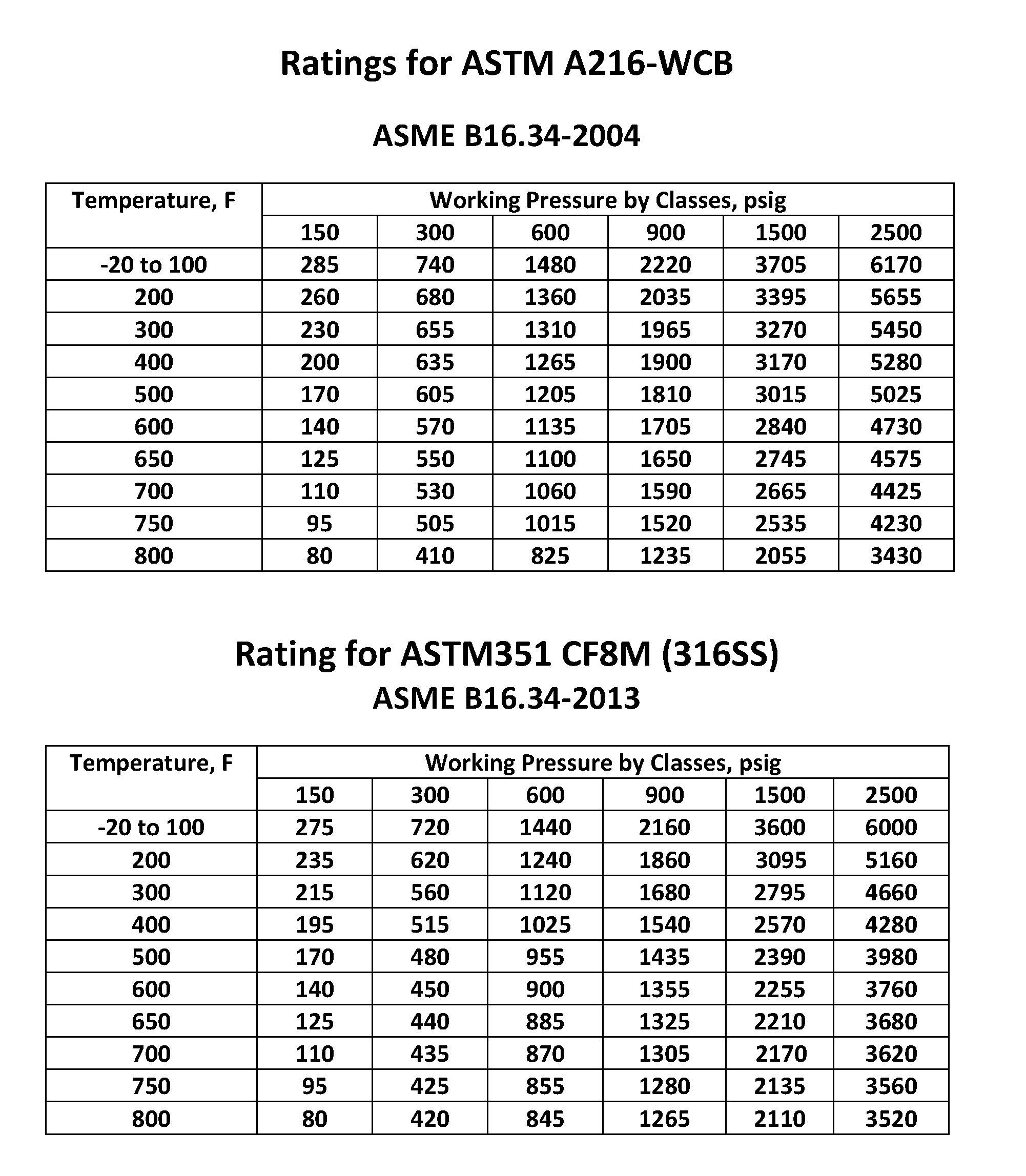

Pressure and Temperature Ratings For Valves

Maximum Ratings

 Synthetic Seal Valves Recommended to 200°F.

 Viton Seal Valves recommended to 400°F.

 Teflon Seal Valves Recommended to 450°F.

 Metal to Metal Seal Valves with Special Gaskets Recommended above 450°F.

  The Arrow Valve Company, invites any inquiries regarding construction, design and application of our valves.



Standards and Specifications

Many standards play an important role in the manufacture of valves to provide the consumer uniform and safe products.

These standards and specifications prescribe rules and regulations for construction of boilers and pressure vessels, including

valves and safety appliances, specifications for materials, dimensional standards and requirements for piping systems.



Associations

Arrow Valves, wherever applicable, conform to the requirements set forth by the following associations:

API-American Petroleum Institute

ASME-American Society of Mechanical Engineers

ASTM-American Society for Testing and Materials

NACE-National Association of Corrosion Engineers

ANSI-American National Standards Institute

MSS-Manufacture Society for Standards of Valve and Fitting Industry
