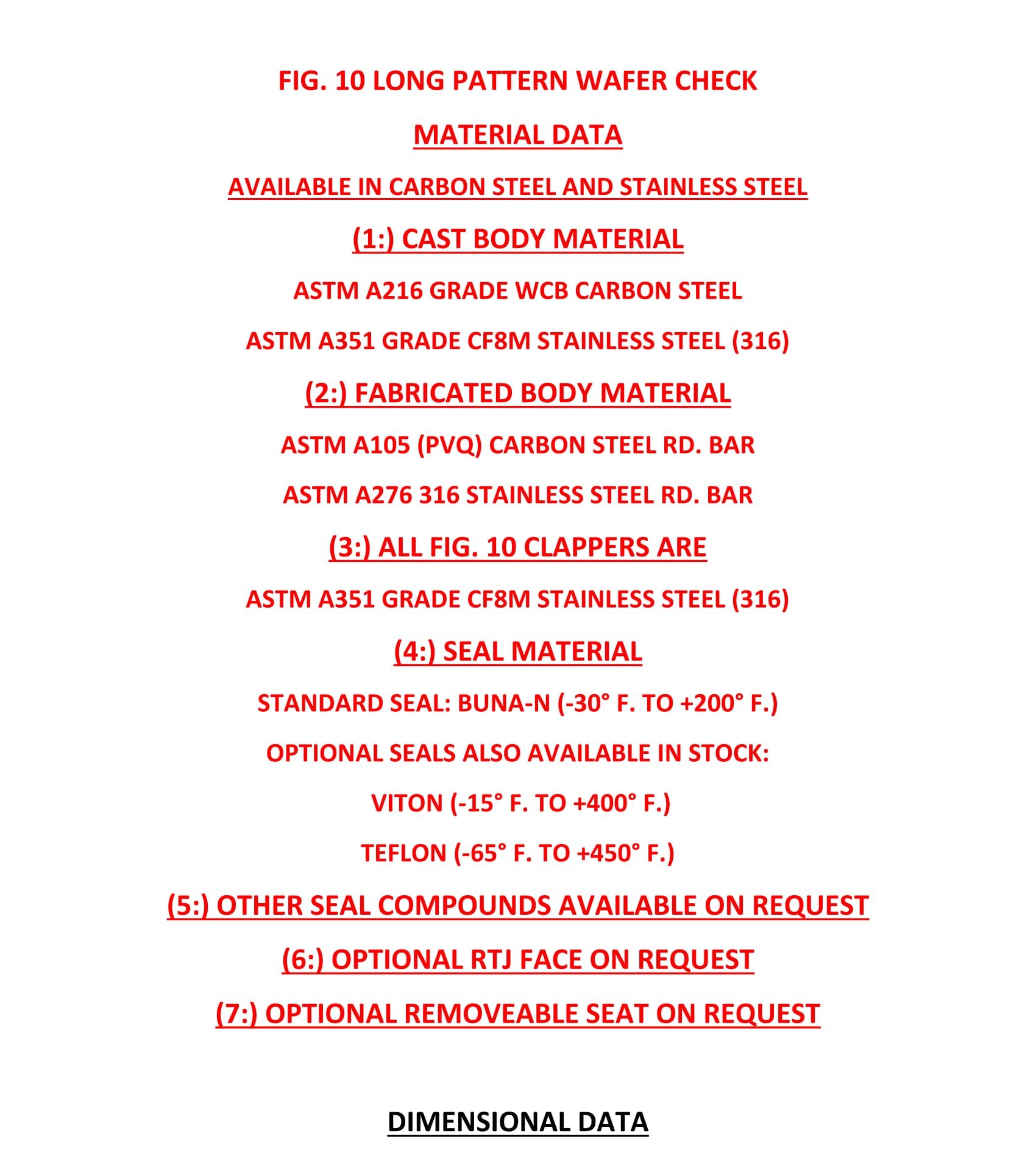

FIG. 10 LONG PATTERN WAFER CHECK

MATERIAL DATA

AVAILABLE IN CARBON STEEL AND STAINLESS STEEL

(1): CAST BODY MATERIAL

ASTM A216 GRADE WCB CARBON STEEL

ASTM A351 GRADE CF8M STAINLESS STEEL (316)

(2): FABRICATED BODY MATERIAL

ASTM A105 (PVQ) CARBON STEEL RD. BAR

ASTM A276 316 STAINLESS STEEL RD. BAR

(3): ALL FIG. 10 CLAPPERS ARE

ASTM A351 GRADE CF8M STAINLESS STEEL (316)

(4): SEAL MATERIAL

STANDARD SEAL: BUNA-N (-30° F. TO +200° F.)

OPTIONAL SEALS ALSO AVAILABLE IN STOCK:

VITON (-15° F. TO +400° F.)

TEFLON (-65° F. TO +450° F.)

(5): OTHER SEAL COMPOUNDS AVAILABLE ON REQUEST

(6): OPTIONAL RTJ FACE ON REQUEST

(7): OPTIONAL REMOVABLE SEAT ON REQUEST

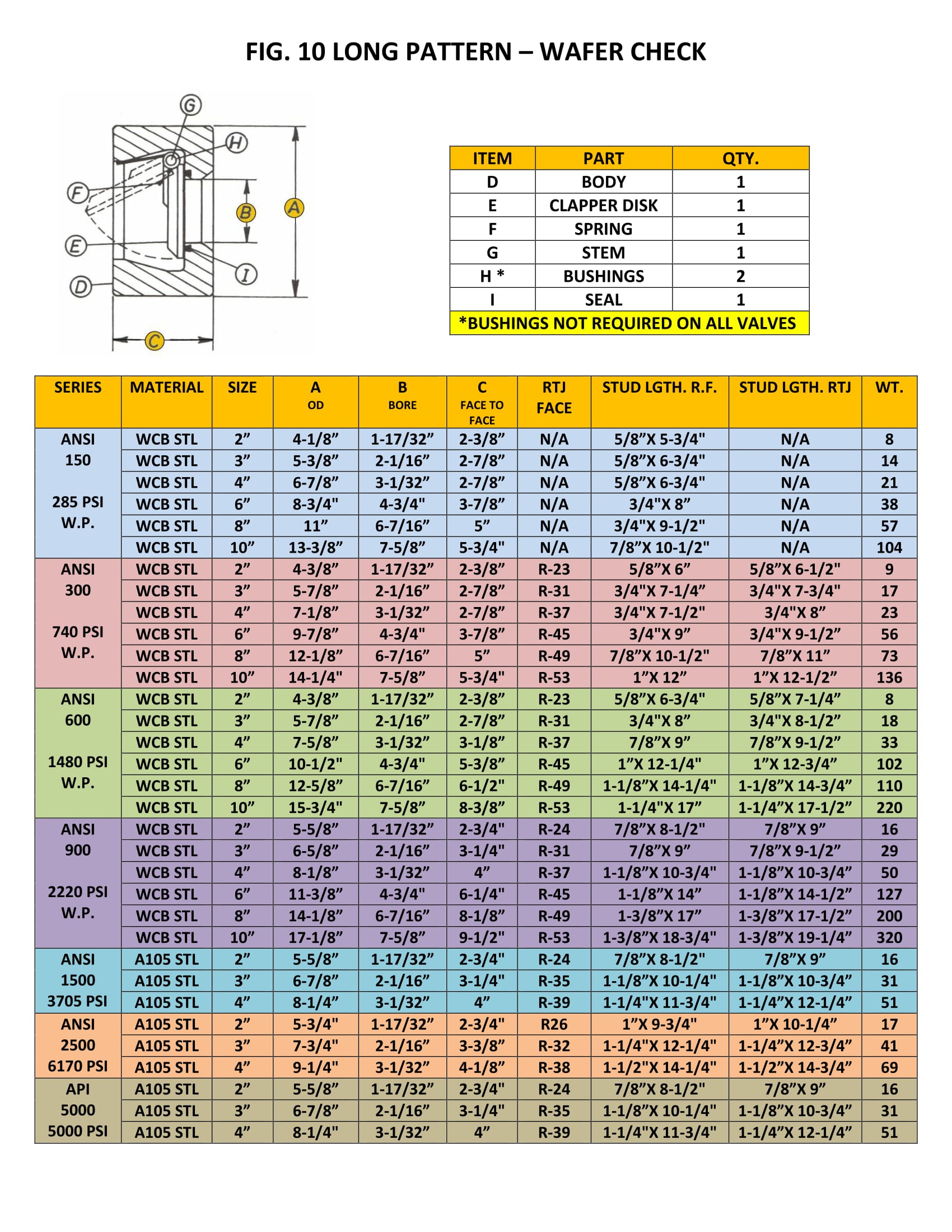

DIMENSIONAL DATA
