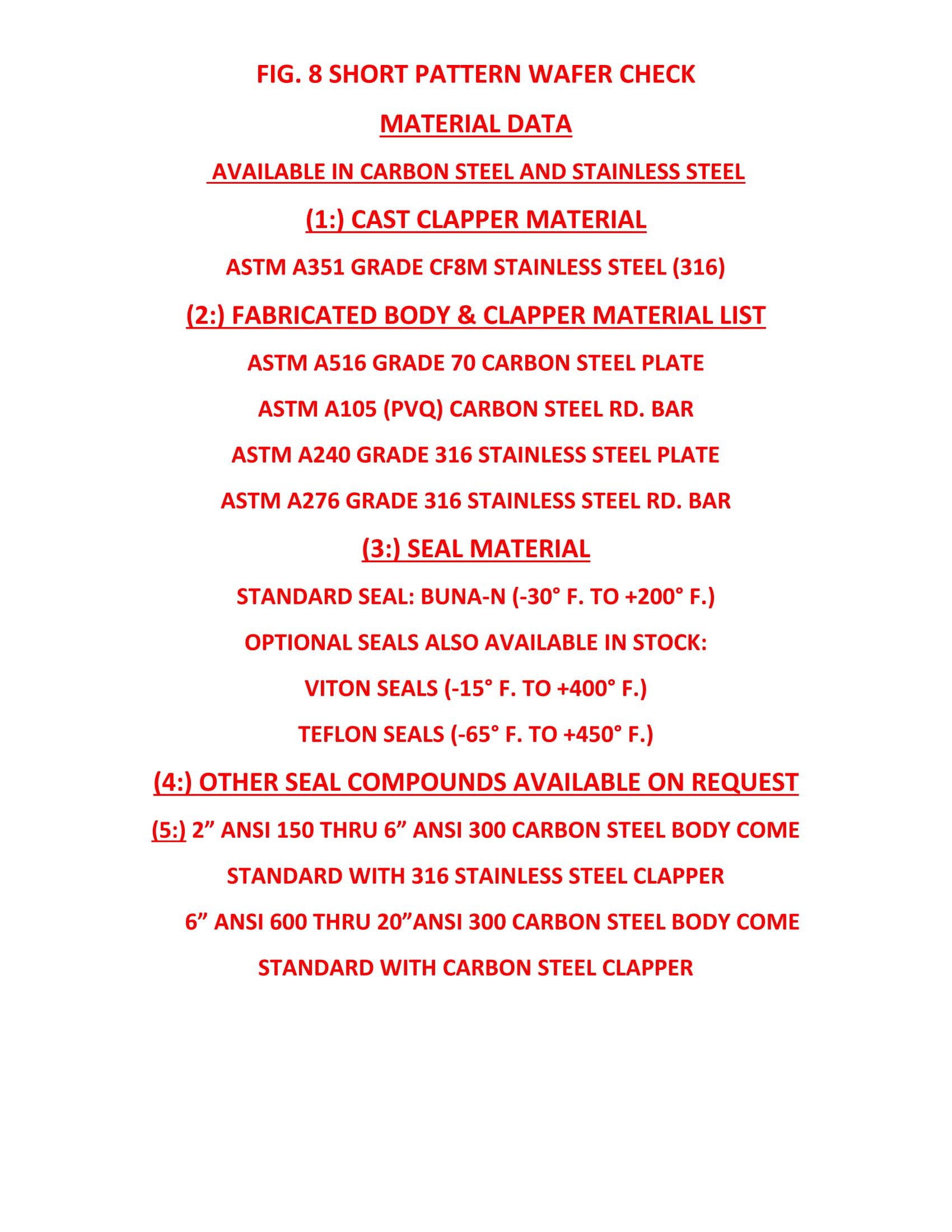

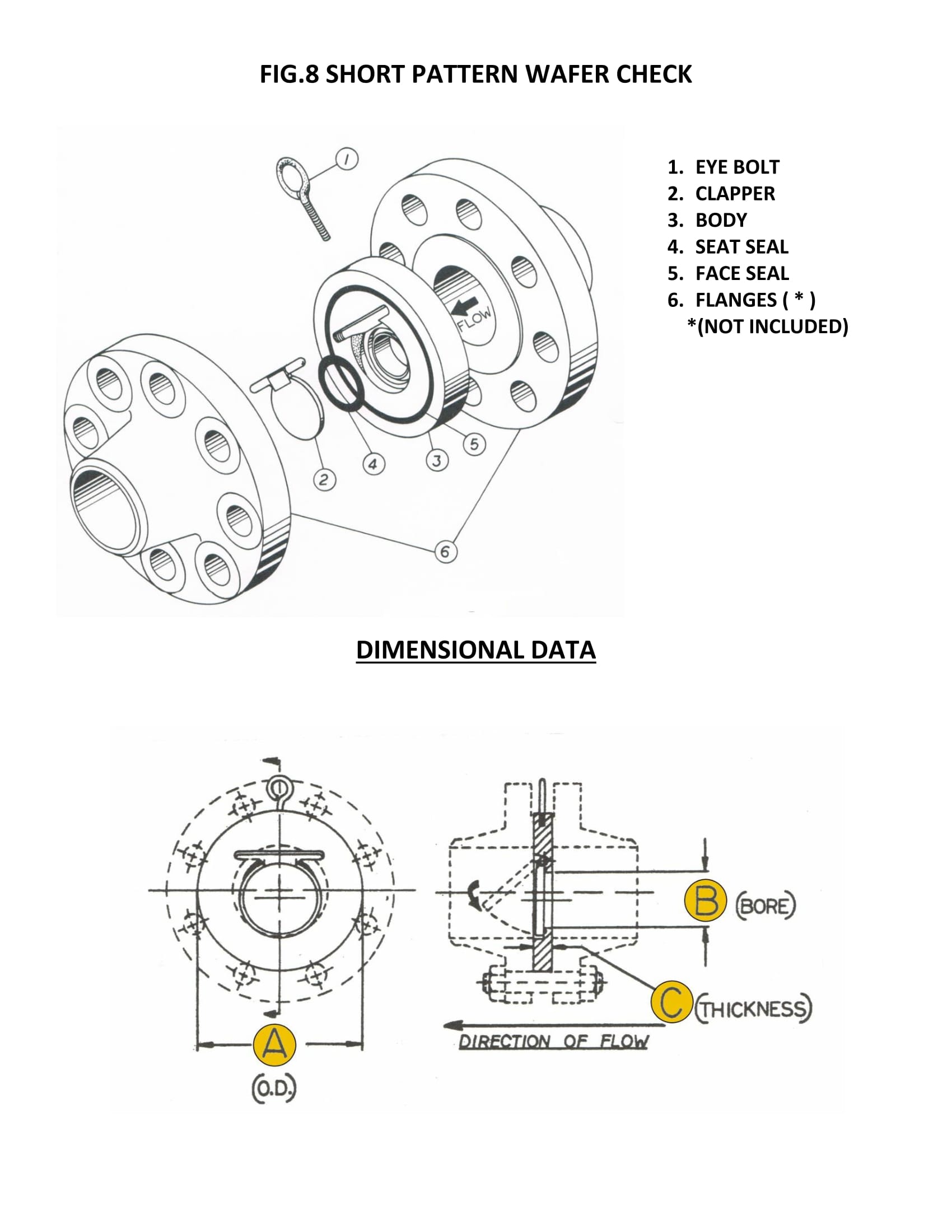

FIG. 8 SHORT PATTERN WAFER CHECK

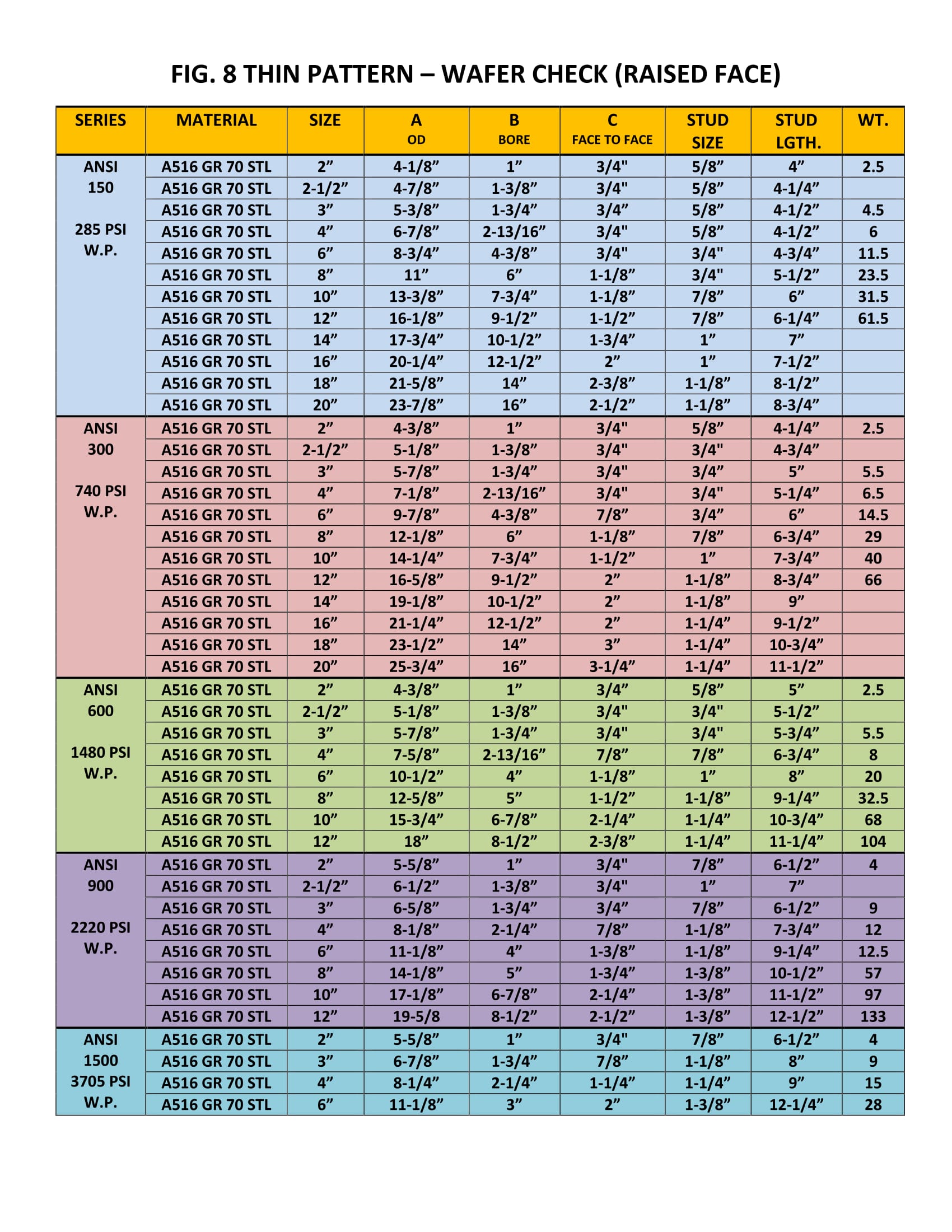

MATERIAL DATA

AVAILABLE IN CARBON STEEL AND STAINLESS STEEL

(1:) CAST CLAPPER MATERIAL

ASTM A351 GRADE CF8M STAINLESS STEEL (316)

(2:) FABRICATED BODY & CLAPPER MATERIAL LIST

ASTM A516 GRADE 70 CARBON STEEL PLATE

ASTM A105 (PVQ) CARBON STEEL RD. BAR

ASTM A240 GRADE 316 STAINLESS STEEL PLATE

ASTM A276 GRADE 316 STAINLESS STEEL RD. BAR

(3:) SEAL MATERIAL

STANDARD SEAL: BUNA-N (-30° F. TO +200° F.)

OPTIONAL SEALS ALSO AVAILABLE IN STOCK:

VITON SEALS (-15° F. TO +400° F.)

TEFLON SEALS (-65° F. TO +450° F.)

(4:) OTHER SEAL COMPOUNDS AVAILABLE ON REQUEST

(5:) 2” ANSI 150 THRU 6” ANSI 300 CARBON STEEL BODY COME

STANDARD WITH 316 STAINLESS STEEL CLAPPER

6” ANSI 600 THRU 20” ANSI 300 CARBON STEEL BODY COME

STANDARD WITH CARBON STEEL CLAPPER
